Aluminium Double Hung Windows

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Availability:

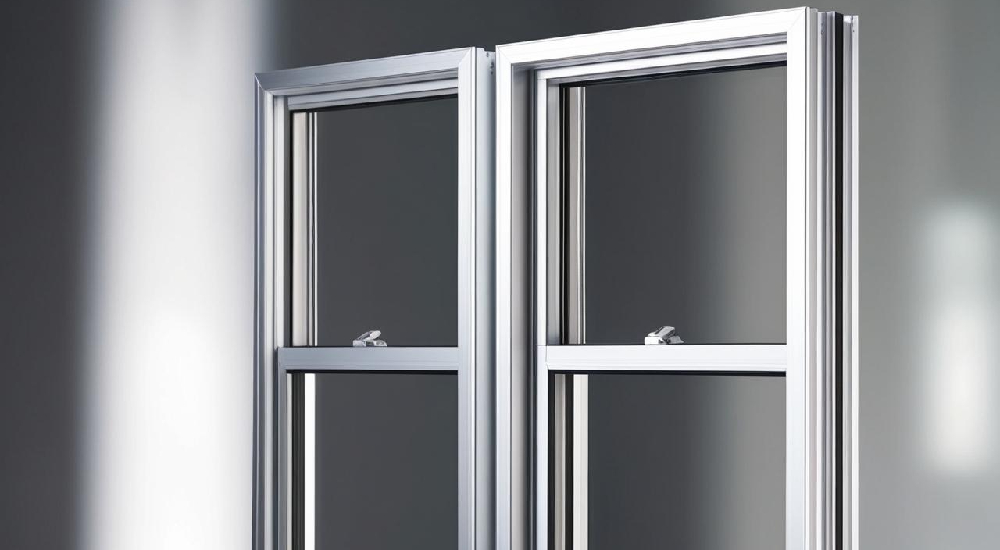

VIGORAWINDOWS Aluminium Double Hung Windows

VIGORAWINDOWS’s aluminum double hung windows blend timeless sash elegance with modern performance. Our double hung systems—crafted by leading double hung window manufacturers—feature two vertically sliding sashes for effortless ventilation, easy cleaning, and classic appeal. Available in a spectrum of double hung window styles, these units suit heritage homes, contemporary apartments, and commercial projects alike.

Product Variations

Traditional Sash Types

Vertical Double Hung Window – Two sashes slide vertically in parallel tracks for balanced airflow.

Horizontal Double Hung Window – Side-by-side sliding sashes ideal for wide openings.

Large Double Hung Window – Oversized modules up to 2.5 m tall, opening up generous views.

Specialized Configurations

Double Hung Awning Window – Top-hung vent combined with sliding sash for secure airflow in wet areas.

Double Hung Bathroom Window – Frosted glazing and concealed hardware for privacy.

Double Hung Bay & Bow Window – Three-pane (bay) or multi-pane (bow) projections that add space and natural light.

Double Hung Casement Window – Hybrid design pairing sash operation with side-hinged opening vents.

Double Hung Fixed Window – Non-operable panels complement active sashes or fill awkward openings.

Double Hung Egress Window – Code-compliant escape units for basements or habitable attic conversions.

Double Hung Double Pane Window – Insulated glass units (IGUs) for enhanced thermal and acoustic comfort.

Design & Construction

Frame & Mechanism

VIGORAWINDOWS employs thermally broken aluminium profiles with slim sightlines (30–50 mm) and integrated weep channels. Our double hung window mechanism uses stainless-steel counterweights or spring balances for smooth, counterbalanced sash movement.

Glazing & Seals

Choose from single 6 mm glass up to 28 mm double or triple glazed assemblies. High-performance EPDM gaskets and compression seals ensure air infiltration rates to Class 4 and water penetration resistance up to 600 Pa.


Specifications & Dimensions

  • Standard Dimensions: Widths 600–1500 mm; heights 900–2500 mm.

  • Custom Sizes: Any dimension within 400–2500 mm width and 800–3000 mm height—contact us for a tailored double hung window quote.

  • Detailing: Precision-mitred corners, concealed drainage, and hardware that integrates flush into the sash frame.


Applications & Use Cases

  • Heritage Properties: Preserve traditional double hung window construction while upgrading to modern thermally broken frames.

  • Residential Apartments: Feature double hung bay window and double hung bow window in living rooms to create seating nooks bathed in daylight.

  • Basement Conversions: Install double hung egress window units to provide safe emergency escape and code compliance.

  • Wet-Area Ventilation: Use double hung awning window in bathrooms and kitchens for secure top-hung airflow.


Upgrade your project with VIGORAWINDOWS Aluminium Double Hung Windows
