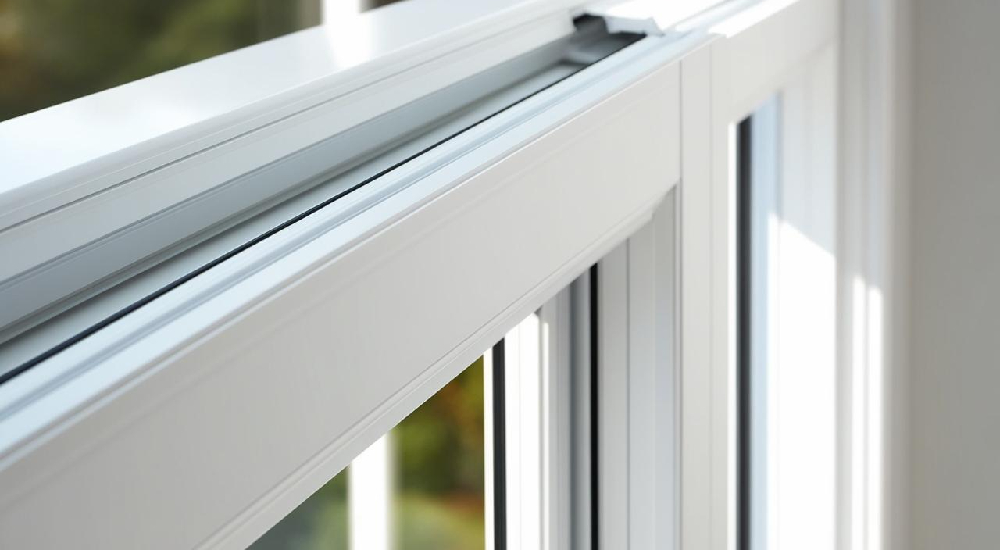

VIGORAWINDOWS's tilt sash window collection offers secure, versatile ventilation with sleek aesthetics. Engineered for seamless operation and low-maintenance performance, our tilting window systems are ideal for kitchens, bathrooms, and living spaces where fresh air and safety are priorities.

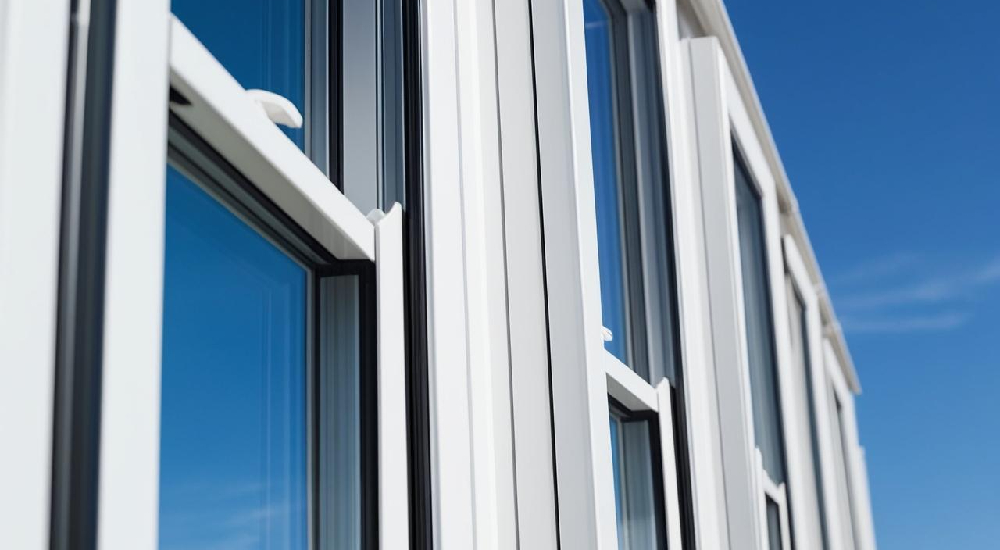

A UPVC tilt window opens inward at the top via an integrated window tilt mechanism, allowing air circulation without compromising security. When closed, the sash locks firmly against the frame for airtight insulation and weather resistance. Our range includes:
Standard Tilt Sash Window
Tilt and Slide Window
Slides horizontally, then tilts
Single Hung Tilt Window
Bottom sash fixed, top sash tilts
Double Slider Tilt Window
Both sashes slide and tilt
Each style combines the elegance of a conventional sash with the practical benefits of modern hardware.
Frame depths: 70 mm multi-chambered UPVC for superior thermal performance
Custom sizes: widths 400–1800 mm, heights 500–2200 mm
Precision-machined gears and cams ensure smooth tilt action up to 100° open
Adjustable friction stays control ventilation angle
Air-infiltration: Class 4 (EN 12207)
Water-tightness: 600 Pa (EN 12208)
Uw values down to 1.3 W/m²K with double glazing
Tilt Window Hinges: Top-hung and tilt window bottom hinge assemblies rated for 20 000 cycles
Tilt Window Lock: Multi-point espagnolette locks engage at head and sill for security
Tilt Window Handle: Ergonomic levers with lockable options for child-safe ventilation
Replacement Gears & Cams: Modular components for maintenance
Tilt Window Parts: Friction stays, locking keeps, and seal cartridges
Tilt Window Screen: Retractable insect screens mounted inside the frame to follow sash tilt

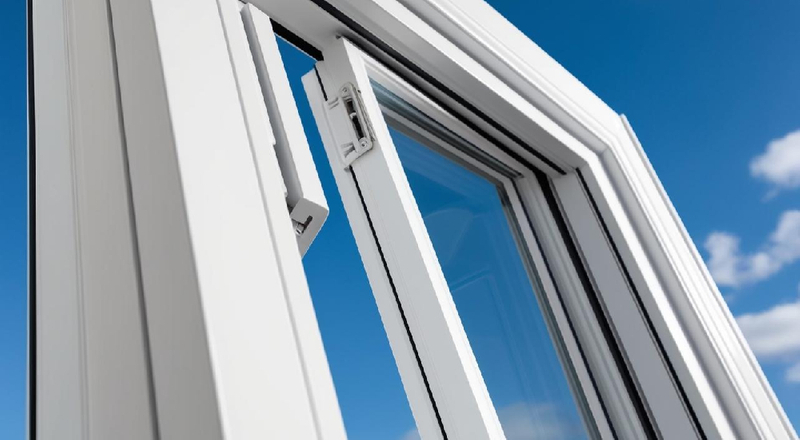

Tilt and Slide Window – Sash slides on a concealed track, then tilts open—ideal for tight spaces.
Single Hung Tilt Window – Lower sash fixed, upper sash tilts inward for controlled airflow.
Double Slider Tilt Window – Both sashes can slide and tilt, offering versatile ventilation.
Mix-and-match styles on a single elevation to suit any architectural requirement.
Ensure the rough opening exceeds final tilt window sizes by 10 mm per side
Level and plumb the frame, secure through reinforcement chambers, and seal per VIGORA's data sheet
Adjust the window tilt mechanism and friction stays for balanced operation
Clean tilt window hardware annually with mild detergent
Inspect gaskets and lubricate gears/cams every 12 months
Replace tilt sash window parts as needed for long-term reliability
Secure Ventilation – Top-hung tilt prevents intruders while allowing fresh air even during rain.
Easy Cleaning – Sash tilts fully inward for safe, one-person cleaning from inside.
Energy Efficiency – Multi-chamber frames and tight seals reduce heat loss and noise.
Bathroom & Kitchen – Drain away steam and odors with tilt and turn window–style airflow.
Bedrooms & Offices – Maintain privacy with controlled ventilation.
High-Rise Apartments – Safe fresh air without the risk of open sashes.
Upgrade your project with VIGORAWINDOWS UPVC Tilt Windows
seven@vigorawindows.comFree consultation & quote
