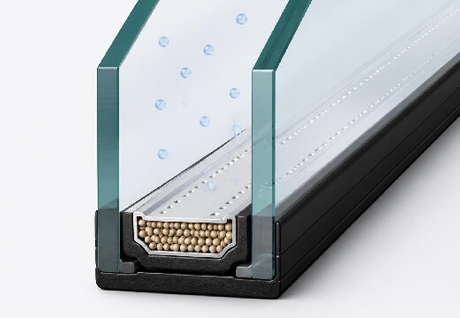

What Is a Warm Edge Spacer and Why Does It Matter in Double Glazed Windows

When buyers compare double glazed aluminium or uPVC windows, they often focus on the glass.

They may ask about:

· Glass thickness

· Double glazing

· Low-E coating

· Argon gas

· Tempered glass

· Laminated glass

But there is another component inside the insulated glass unit that deserves attention:The spacer.

The spacer sits between the glass panes around the edge of the insulating glass unit.

It helps maintain the space between the panes and forms part of the sealed edge system.

For B2B window buyers, spacer selection can affect the thermal performance of the glass edge and the overall window.

This is where the term warm edge spacer becomes important.

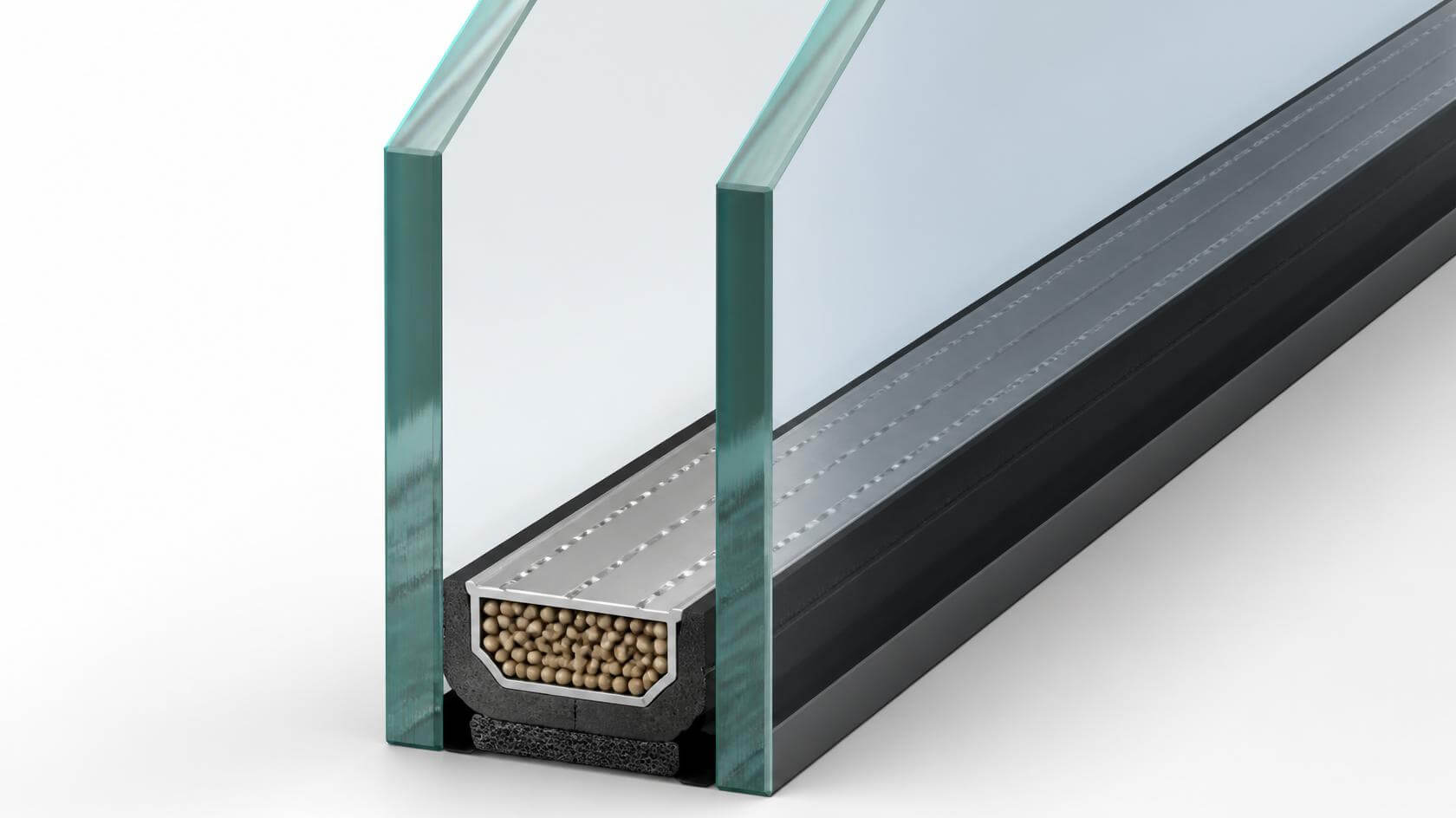

What Is a Spacer in Double Glazed Windows

An insulated glass unit, or IGU, normally consists of:

· Two or more glass panes

· A spacer system

· A sealed cavity

· Sealant

· Desiccant

· Optional gas filling

The spacer keeps the glass panes at the required distance from each other.

The cavity may contain air or another gas, such as argon, depending on the specification.

The spacer is installed around the edge of the glass and works together with the sealant system to create the insulated glass unit.

In simple terms: Glass + spacer + sealant + cavity = insulated glass unit

Therefore, the spacer should not be treated as an independent decorative component.

It is part of the IGU's thermal and sealing system.

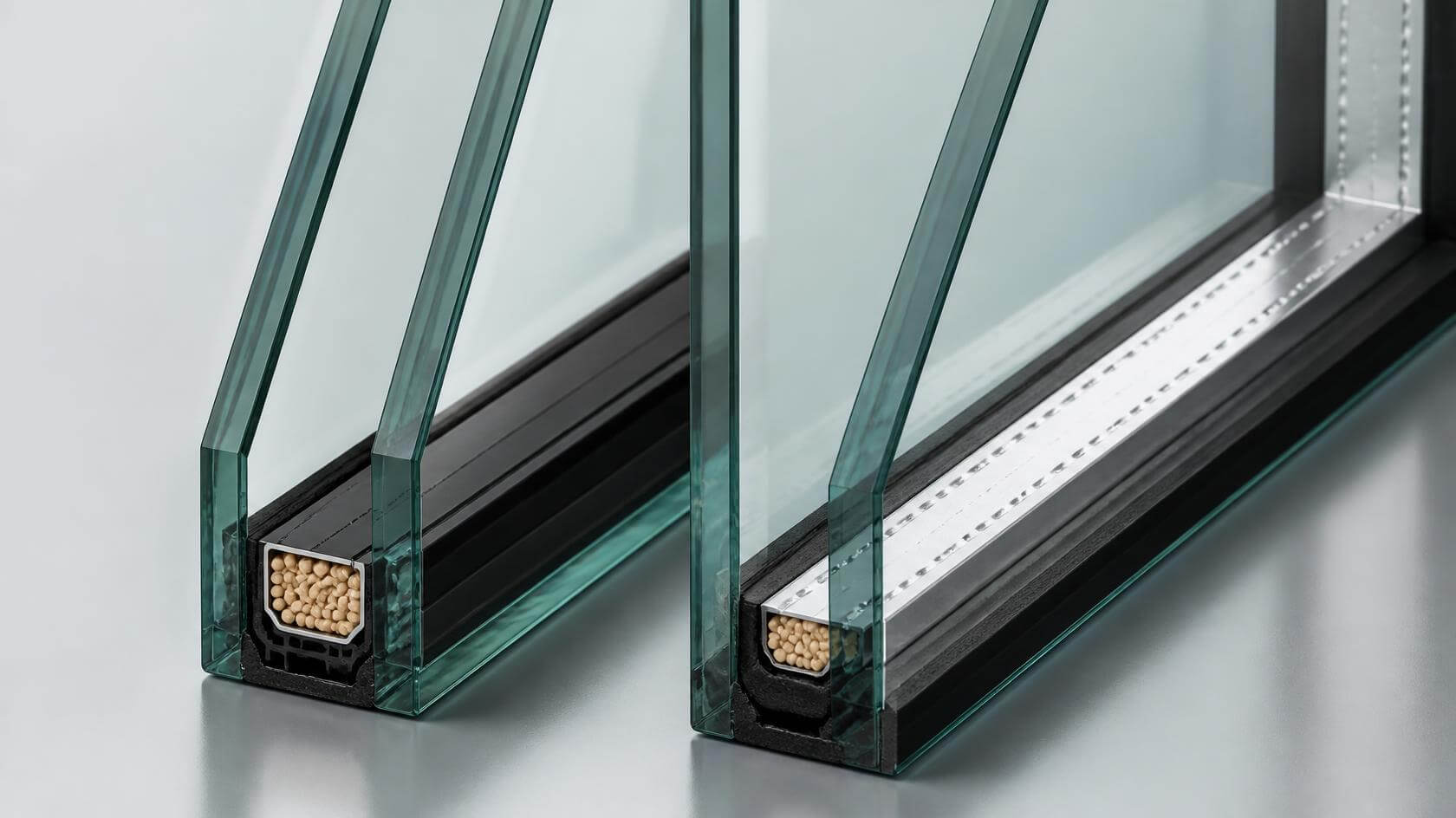

What Is a Warm Edge Spacer

A warm edge spacer is a spacer designed to reduce heat transfer through the edge of the insulating glass unit.

Traditional metal spacers, especially aluminium spacers, have relatively high thermal conductivity.

Because the spacer is positioned at the glass edge, it can create a thermal bridge.

Warm edge systems use materials or hybrid constructions designed to reduce this heat transfer.

The Glass Association of North America describes warm edge spacers as systems specifically designed to reduce thermal transmittance across the edge of glass. It also notes that warm edge spacers can use materials with lower conductivity than aluminium, including certain stainless steel, plastic, foam and hybrid constructions.

The key point is: A warm edge spacer does not replace good glass. It improves one part of the insulated glass system.

The final window performance still depends on the complete configuration.

Why Does the Glass Edge Matter

The center of an insulated glass unit can perform differently from the glass edge.

At the edge, heat can transfer through:

· Spacer

· Sealant

· Glass edge

· Frame

· Surrounding materials

The frame and spacer therefore interact.

This is especially important when evaluating whole-window thermal performance.

A buyer may select excellent Low-E glass, but the final result still depends on how the glass is assembled and integrated into the window.

The Glass Association of North America also notes that spacer performance should be compared within the same insulating glass configuration because factors such as spacer geometry, sealant, desiccant and frame bite can influence edge conductance.

This is an important lesson for B2B buyers: Do not compare spacers based only on material names.

Compare them within the complete IGU system.

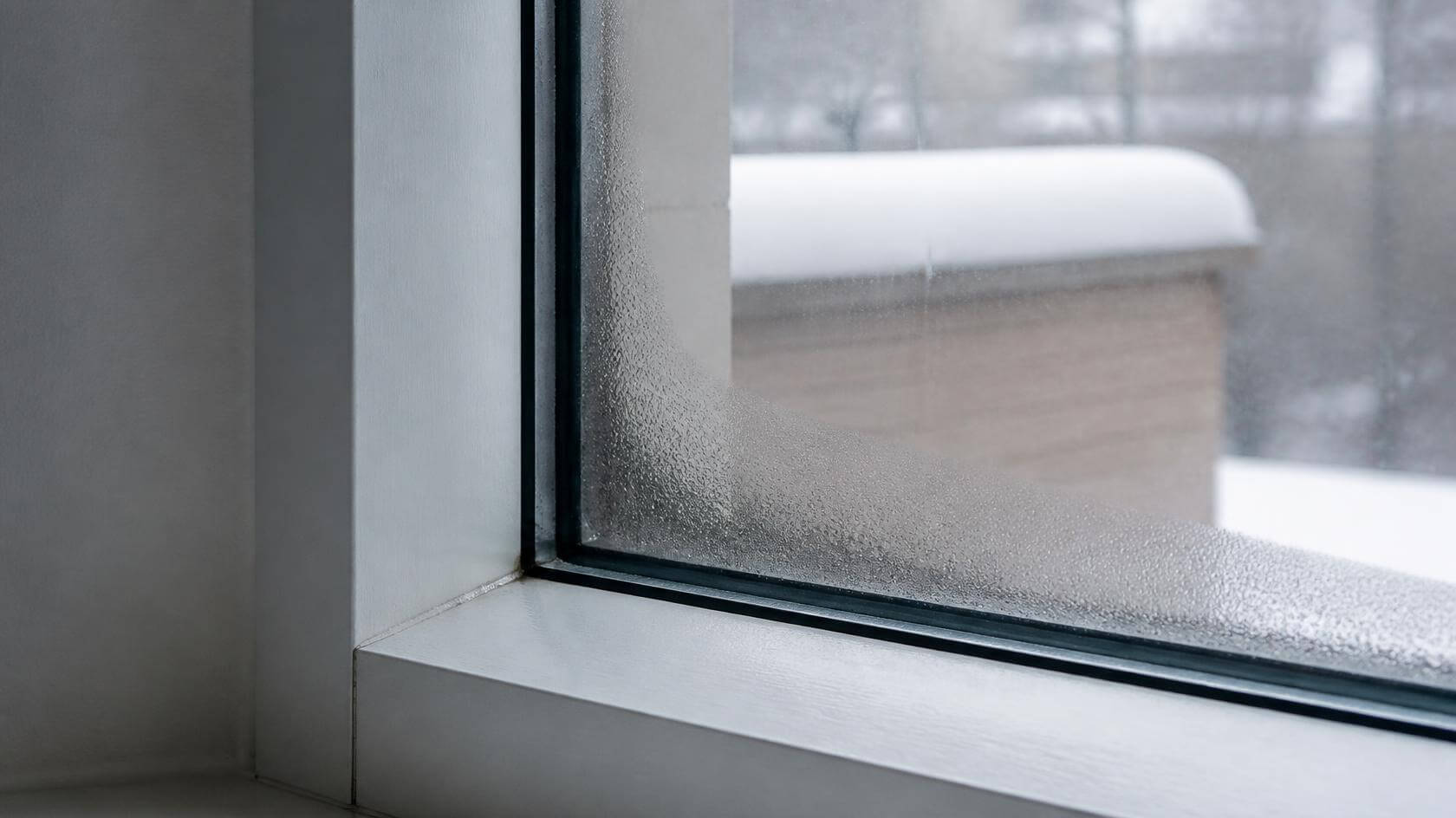

Can a Warm Edge Spacer Reduce Condensation

It can help reduce the risk of condensation at the glass edge under suitable conditions.

Why?

Condensation occurs when a surface temperature falls below the dew point of the surrounding air.

The edge of a window can be colder than the center of the glass.

A thermal bridge at the edge can increase heat transfer and contribute to lower edge temperatures.

A warm edge spacer can reduce thermal transfer at this location.

However, buyers should avoid claims such as:

“Warm edge spacers completely prevent condensation.”

That is too broad.

Actual condensation depends on:

· Indoor temperature

· Indoor humidity

· Outdoor temperature

· Glass configuration

· Frame system

· Spacer

· Installation

· Ventilation

· Building use

Therefore, the correct statement is: A suitable warm edge spacer can contribute to improved edge thermal performance and may reduce condensation risk under appropriate conditions.

Warm Edge Spacer vs Traditional Metal Spacer

For a distributor, the basic comparison can be summarized as follows:

This table should be treated as a general procurement guide rather than a guarantee of a specific performance difference.

The actual result depends on the complete IGU design.

Does a Warm Edge Spacer Improve the Whole Window U-Value

It can contribute to improved whole-window thermal performance, but the effect should not be considered in isolation.

A window's thermal performance can be affected by:

· Frame material

· Thermal break

· Glass

· Low-E coating

· Gas filling

· Spacer

· Sealants

· Window size

· Glass-to-frame ratio

For example, a thermally broken aluminium frame with Low-E double glazing and a warm edge spacer may have a different whole-window performance from a standard aluminium frame using the same glass.

This is why professional buyers should request the complete window specification.

Warm Edge Spacer Materials

Warm edge systems can use different materials and constructions.

Examples can include:

· Stainless steel

· Plastic

· Foam-based materials

· Hybrid systems

· Composite spacer systems

However, “warm edge” should not be treated as one single material.

Two products may both be described as warm edge spacers but have different designs and performance.

When purchasing windows, buyers should therefore ask for:

· Spacer manufacturer

· Spacer model

· Spacer width

· Spacer material

· Sealant system

· IGU configuration

· Applicable performance data

What Should Window Buyers Ask Suppliers

For B2B procurement, include spacer information in the technical specification.

Question 1: What spacer is used?

Ask for the exact material and model.

Question 2: Is it a warm edge system?

Do not rely only on the phrase “energy-saving glass.”

Question 3: What is the spacer width?

Spacer width can affect the insulating cavity and overall IGU design.

Question 4: What glass is used?

Confirm:

· Glass thickness

· Low-E coating

· Tempered or laminated

· Number of panes

Question 5: What gas is used?

Confirm whether the cavity contains:

· Air

· Argon

· Other gas

Question 6: What sealant system is used?

The spacer and sealant work together as part of the IGU edge system.

Question 7: What thermal performance is provided?

Ask whether the value refers to:

· Glass

· IGU

· Whole window

A Practical IGU Specification Checklist

For a project quotation, distributors can use this format:

This creates a much clearer technical record than simply writing:

“Double glazing with Low-E.”

Warm Edge Spacer and Aluminium Windows

Warm edge spacers can be particularly useful when combined with thermally improved aluminium window systems.

Aluminium itself has relatively high thermal conductivity.

A thermal break can reduce heat transfer through the aluminium frame.

The spacer can address heat transfer around the edge of the glass.

This means a complete energy-efficient aluminium window can involve several coordinated components:

Thermal break + Low-E glass + insulated cavity + warm edge spacer + effective sealing

No single component creates the complete performance.

Warm Edge Spacer and uPVC Windows

uPVC window systems also use insulated glass units.

Because uPVC has relatively low thermal conductivity compared with aluminium, the glazing edge can become an important part of the overall thermal design.

For high-performance uPVC windows, buyers should still evaluate the complete system instead of focusing on one component.

This includes:

· Profile

· Reinforcement

· Glass

· Spacer

· Hardware

· Seals

· Installation

Why Distributors Should Specify the Spacer Before Ordering

For distributors, the spacer specification becomes particularly important when selling the same window system repeatedly.

Imagine a distributor develops a product specification for an energy-efficient apartment project.

The first order uses one spacer.

Six months later, the supplier changes the spacer without informing the distributor.

The final products may look almost identical, but their technical specifications are no longer exactly the same.

For this reason, the buyer should record the spacer model as part of the approved product configuration.

A complete product record can include:

Window series → Glass → Low-E → Gas → Spacer → Hardware → Finish

This makes repeat orders more consistent.

Why Work With VIGORAWINDOWS

For overseas distributors and project buyers, VIGORAWINDOWS treats the glazing configuration as part of the complete window specification.

When discussing aluminium or uPVC windows, buyers can confirm:

· Glass configuration

· Low-E requirements

· Spacer

· Gas filling

· Window profile

· Hardware

· Window dimensions

· Project performance requirements

This allows buyers to establish a clear specification before mass production.

The goal is not simply to select the most expensive glass or spacer.

The goal is to build a complete window configuration that provides the performance required by the project.

Frequently Asked Questions

What is a warm edge spacer?

A warm edge spacer is an insulating glass spacer designed to reduce thermal transmittance at the edge of the glass compared with more conductive spacer constructions.

Is a warm edge spacer better than an aluminium spacer?

A warm edge spacer is generally designed to reduce heat transfer through the glass edge. Whether it is appropriate depends on the required window performance, project requirements and budget.

Can warm edge spacers prevent condensation?

They can help reduce condensation risk at the glass edge under suitable conditions, but condensation also depends on indoor humidity, temperature, glass configuration, frame and installation.

Does a warm edge spacer improve U-value?

It can contribute to improved thermal performance of the IGU and complete window, but the final U-value depends on the entire window system.

Should distributors specify the spacer in a purchase order?

Yes. If thermal performance and repeat-order consistency are important, the spacer material and model should be included in the approved product specification.
