Window Hardware Selection Guide: What Distributors Should Check Before Ordering

Window hardware is easy to underestimate.

When distributors compare aluminium or uPVC windows, they often focus on profile thickness, glass, color and price.

Hardware may look like a small part of the final product, but it has a direct effect on how the window opens, closes, locks and operates.

For B2B buyers, poor hardware selection can lead to:

· Difficult operation

· Premature wear

· Loose handles

· Roller problems

· Locking problems

· Customer complaints

· Higher replacement costs

The right approach is to select hardware as part of the complete window system.

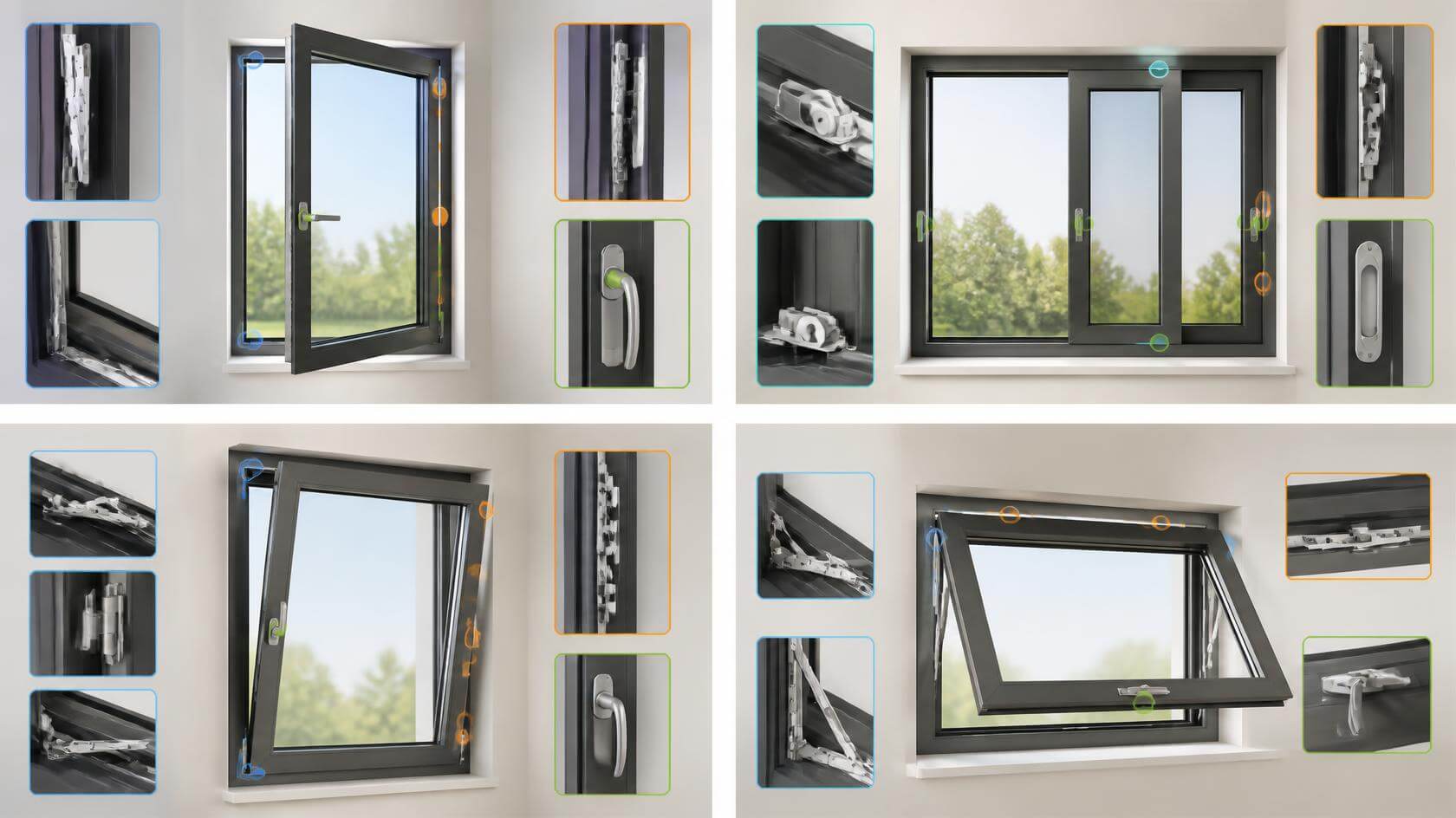

1. Match the Hardware to the Window Type

The first question should be:

What type of window is being produced?

Different window designs require different hardware systems.

Casement windows

Casement windows may use:

· Handles

· Hinges

· Friction stays

· Multi-point locking systems

· Corner transmission components

The hardware needs to match the sash size and weight.

Sliding windows

Sliding windows commonly depend on:

· Rollers

· Locks

· Handles

· Tracks

· Anti-lift components

Roller quality becomes particularly important because the user repeatedly moves the sash along the track.

Tilt and turn windows

Tilt and turn windows normally require a more complex hardware mechanism because the same sash can perform different opening functions.

The hardware system must be compatible with the profile and sash geometry.

Awning windows

Awning windows use a different operating mechanism from ordinary casement windows.

The hardware must support the opening direction and the weight of the sash.

This means distributors should avoid buying generic hardware first and asking the factory to make it fit later.

2. Glass Weight Can Change the Hardware Requirement

One of the most important purchasing factors is sash weight.

A window sash becomes heavier when the buyer selects:

· Larger glass

· Thicker glass

· Double glazing

· Triple glazing

· Laminated glass

· Larger sash dimensions

For example, upgrading a small single-glazed window to a large double-glazed sash can significantly change the load carried by the hinges and other components.

Therefore, hardware selection should consider:

Sash size + glass weight + opening frequency + operating method

Do not select hardware based only on the profile series.

The complete assembled sash should be considered.

For glazing systems with greater glass weight, the hardware and supporting components should be checked accordingly. Industry guidance on triple glazing also highlights the effect of increased glazing weight on hardware service life, especially hinges.

This is particularly important for project orders with large window dimensions.

3. Consider How Frequently the Window Will Be Used

Not every window has the same operating frequency.

A bedroom window in a residential building may open only occasionally.

A window in a school, office, hotel or commercial building may be opened much more frequently.

Therefore, distributors should consider:

· Expected operating frequency

· User type

· Building type

· Window size

· Sash weight

· Required durability

· Maintenance conditions

For frequently operated windows, hardware durability becomes more important than simply choosing the cheapest component.

There are also standardized methods for evaluating operating forces.

For example, ASTM E2068 addresses the determination of operating forces for sliding windows and doors, while FGIA AAMA 513 provides a laboratory method for determining forces and motions required to activate operable parts of windows and doors in accessibility applications.

These standards are useful reminders that ease of operation can be measured rather than treated only as a subjective quality claim.

4. What Distributors Should Check Before Approving Hardware

Before placing a bulk order, request a hardware specification sheet.

The document should identify:

This gives distributors a reference point for future repeat orders.

Without a clear specification, a supplier may replace a component with another model that looks similar but performs differently.

5. Hardware Consistency Matters for Distributors

For a distributor, hardware is not only a technical issue.

It is also a supply-chain issue.

Imagine a distributor orders 500 windows in March and another 500 windows six months later.

If the hardware model changes between orders, the appearance and operating feel may be different.

This can create problems for:

· Showrooms

· Housing projects

· Replacement parts

· Customer expectations

· Installation teams

· After-sales service

For this reason, distributors should record the complete hardware specification for each product series.

A useful product record should include:

Window model → profile system → glass specification → hardware model → finish → accessories

This creates a repeatable product configuration.

How to Build a Better Hardware Approval Process

Before mass production, distributors can use a simple five-step process.

Step 1: Confirm the window type

Identify whether the product is casement, sliding, tilt and turn, awning or another system.

Step 2: Confirm sash dimensions

Provide the actual width and height.

Step 3: Confirm glass weight

Specify the glass thickness and configuration.

Step 4: Confirm operating requirements

Explain how often the window is expected to be opened and who will use it.

Step 5: Approve a sample

Before mass production, check:

· Handle operation

· Lock engagement

· Hinge movement

· Roller movement

· Opening angle

· Closing pressure

· Visual finish

This process is more reliable than approving hardware from a product photo alone.

Why Hardware Selection Should Be Part of the Window Quotation

When comparing suppliers, distributors should avoid asking only:

“What hardware do you use?”

A better question is:

“What exact hardware configuration is included in this quotation?”

For example:

Handle: specified model
Lock: specified model
Hinges: specified model
Rollers: specified model
Finish: specified color
Quantity: per window

This makes quotations easier to compare.

It also reduces the risk of unexpected substitutions after the purchase order is confirmed.

Why Work With VIGORAWINDOWS?

For overseas distributors, window hardware should be treated as part of the complete window specification.

VIGORAWINDOWS supplies customized aluminium and uPVC windows for B2B projects and can coordinate the window profile, glass, hardware and other components according to the agreed product specification.

For repeat orders, the goal is to maintain a consistent configuration rather than simply finding the lowest component price.

A clear hardware specification can help distributors control product quality, quotation accuracy and repeat-order consistency.

Frequently Asked Questions

What hardware is used for aluminium windows?

It depends on the window type. Casement, sliding, awning and other window systems require different hardware configurations.

Does heavier glass require stronger hardware?

It may. Larger or heavier glass increases sash weight, which can affect hinges, rollers and other supporting hardware.

Should distributors specify the hardware brand?

If consistency is important, distributors should specify the exact model or an approved equivalent rather than relying only on general descriptions.

Should hardware be tested before mass production?

Yes. A representative sample can help buyers check operation, locking, movement, appearance and compatibility before mass production.

What is the biggest hardware mistake when buying windows from China?

One common mistake is approving the hardware based only on a photo or generic description without recording the exact model, specification and compatibility with the window system.
